Square D Pumptrol 80 psi 100 psi Pressure Switch

Square D Pumptrol 80 psi 100 psi Pressure Switch

Square D

$37.77
(No reviews yet) Write a Review
SKU:
40993
Department Number:
2
Product Source Code:
B
Product Type:
Pressure Switch
Sub-category:
Pressure Switches
Shipping Code:
Y
Vendor Number:
63274
Web Order Multiple:
1
PLA Shipping Charge:
16
CSA LIsted:
Yes
Height:
8 inch
Maximum Pressure:
100 pound per square inch
Maximum Temperature:
158 degree Fahrenheit
Minimum Pressure:
80 pound per square inch
Minimum Temperature:
32 degree Fahrenheit
Pipe Size:
1/4 inch
Sub Brand:
Pumptrol
Thread Type:
NPT
UL Listed:
Yes
Volts:
230 volt
Width:
5 inch
Connection Material:
Stainless Steel
Adding to cart… The item has been added

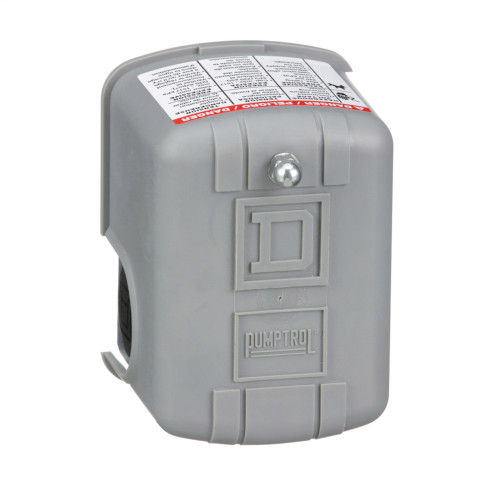

This Square D pumptrol FHG2J27CP air-compressor pressure switch is the most trusted brand in residential, commercial and industrial air compressor applications. The FHG2J27CP controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 100 PSI. The switch has a 1/4 inch NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less. The switch is diaphragm actuated and has a fixed differential. The threshold or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure.Find the AIR COMP SWTCH 80-100PSI at Ace.

!
